7. Programación en datos estructurados

7.1 Capas de toda aplicación

Presentation

Interfaces de usuario

Interfaces con otras aplicaciones

Business

Toda la lógica que involucra toda operación en nuestra aplicación.

Componentes reutilizables que pueden servir para distintas aplicaciones.

Integration

Bases de datos

Legacy Systems

7.2 Programación con patrones

7.2.1 Transfer Object

Problema

Se desean tranferir múltiples elementos de datos a través de capas.

Características

Se desean accesar datos a traves de capas para recuperar o almacenar información.
Reducir el número de operaciones/peticiones a través de la red
Reducir el tráfico de red

Solución

Usar un Transfer Object para llevar múltiples elementos a través de una capa.

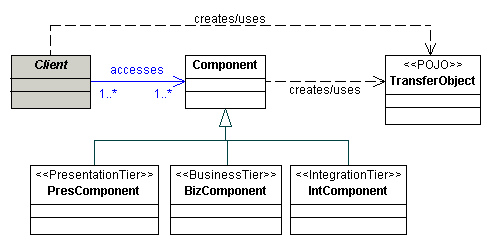

Class diagram

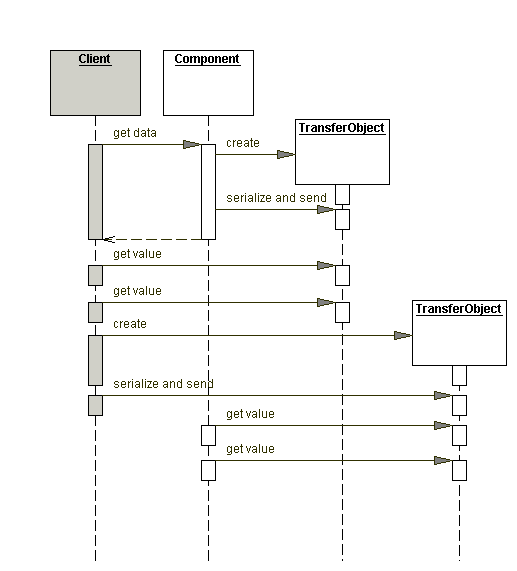

Sequence diagram

Estrategias

Los objetos son actualizables
Se pueden manejar varios objetos a la vez

Efectos

Disminuye el tráfico de red
Simplifica el uso de interfaces "remote"
Se transfieren más datos en menos llamadas remotas
Reduce la duplicación de código
Aumenta la complejidad porque involucra el manejo de sincronización

   1:Example 8.1     CustomerTO.java: Transfer Object Used by CustomerDAO and Its Clients
   2:package com.corej2eepatterns.to;
   3:
   4:public class CustomerTO implements java.io.Serializable {
   5:        private String id;
   6:        private String name;
   7:        private String address;
   8:        . . .
   9:
  10:        public String getId(){ return id; }
  11:        public void setId(String id){ this.id = id; }
  12:        public String getName(){ return name; }
  13:        public void setName(String name){ this.name = name; }
  14:        public String getAddress(){ return address; }
  15:        public void setAddress(String address){
  16:                this.address = address;
  17:        }
  18:        // other getters and setters
  19:        . . .
  20:}

7.2.2 Data Access Object

Problema

Se desea encapsular acceso a datos y manipulación de los mismos en capas separadas.

Características

Se quiere tener mecanismos para el manejo de acceso y manipulación de datos pero en un almacenamiento persistente.
Aislar el almacenamiento persistente del resto de la aplicación.
Interfaz uniforme para distintos tipos de repositorios RDBMS, LDAP, OODB, XML repositories, flat files, etc.
Encapsular información propietaria para facilitar mantenimiento y portabilidad.

Solución

Emplear un Data Access Object DAO para abstraer y encapsular todos los accesos al almacenamiento persistente. El Data Access Object maneja las conexiones para guardar y recuperar datos.

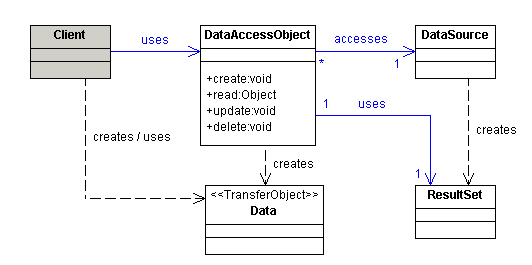

Class diagram

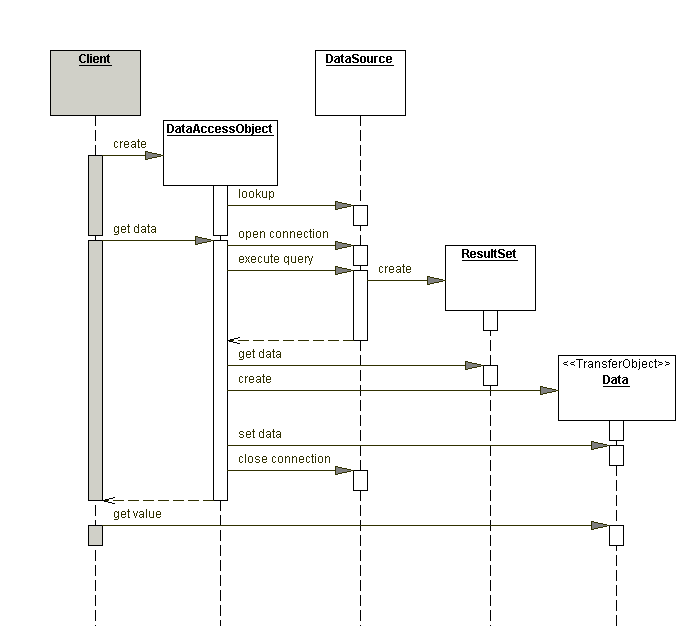

Sequence diagram

Estrategias

Se puede crear un procedimiento a la medida si se desea

Se pueden crear "factories" de DAO para simplificar por ejemplo las conexiones
Interacción con los TO

Cached RowSets

Read Only RowSet

RowSet Wrapper List

Efectos

Centraliza el control de manejadores débilmente acoplados

Simplifica la transparencia

Provee una vision object-oriented y encapsula el concepto de esquemas de bases de datos

Facilita migraciones

Reduce la complejidad de códigos en clientes

Organización en una capa totalmente separada

Requiere de Jerarquías
Introduce complejidad en el manejo de RowSet Wrapper List

   1:Example 8.2     CustomerDAO.java: Data Access Object
   2:package com.corej2eepatterns.dao;
   3:
   4:// imports
   5:
   6:public class CustomerDAO {
   7:        protected static final String FIELDS_INSERT =
   8:                        "customer_name, customer_address, " +
   9:                        "customer_contact, customer_phone, customer_email";
  10:
  11:        protected static final String FIELDS_RETURN =
  12:                        "customer_id, " + FIELDS_INSERT;
  13:
  14:        protected static String INSERT_SQL =
  15:                        "insert into customer ( " + FIELDS_INSERT +
  16:                        " ) " + "values ( ?, ?, ?, ?, ?)";
  17:
  18:        protected static String SELECT_SQL = "select " +
  19:                        FIELDS_RETURN +
  20:                        " from customer where customer_id = ? ";
  21:
  22:        protected static String UPDATE_SQL =
  23:                        "update customer set customer_name = ?, " +
  24:                        "customer_address = ?, customer_contact = ?, " +
  25:                        "customer_phone = ?, customer_email = ? " +
  26:                        "where customer_id = ? ";
  27:
  28:        protected static String DELETE_SQL =
  29:                        "delete from Customer where customer_id = ? ";
  30:
  31:        // the data source used to connect to the back-end database
  32:        private DataSource datasource;
  33:
  34:        public CustomerDAO() throws DAOException {
  35:                try {
  36:                        // Shown here for clarity only. Typically, looking
  37:                        // up a data source is done by a Service Locator
  38:                        // and the DAO just uses the Service Locator to
  39:                        // obtain a data source.
  40:                        InitialContext initialContext =
  41:                                        new InitialContext();
  42:                        datasource = (DataSource) initialContext.lookup(
  43:                                        OracleDAOFactory.DATASOURCE_DB_NAME);
  44:                } catch (NamingException e) {
  45:                        throw new DAOException (
  46:                                        "Cannot locate data source at " +
  47:                                        DAOFactory.DATASOURCE_DB_NAME, e);
  48:                }
  49:        }
  50:
  51:        public String create(CustomerTO cust) throws DAOException {
  52:                // initialize variables
  53:                Connection con = getConnection();
  54:                String customerId = null;
  55:
  56:                PreparedStatement prepStmt = null;
  57:                try {
  58:                        // create and setup statement
  59:                        prepStmt = con.prepareStatement(INSERT_SQL);
  60:                        int i = 1;
  61:                        prepStmt.setString(i++, cust.getName());
  62:                        prepStmt.setString(i++, cust.getAddress());
  63:                        . . .
  64:
  65:                        // execute the statement
  66:                        prepStmt.executeUpdate();
  67:
  68:                        // obtain the newly created customer id value
  69:                        . . .
  70:
  71:                } catch (Exception e) {
  72:                        // handle exception
  73:                } finally {
  74:                        // close connections
  75:                }
  76:
  77:                // return the newly created customer id value
  78:                return customerId;
  79:        }
  80:
  81:        public CustomerTO find(String customerId)
  82:                throws DAOException {
  83:                // initialize variables
  84:                CustomerTO cust = null;
  85:                Connection con = getConnection();
  86:                PreparedStatement prepStmt = null;
  87:                ResultSet rs = null;
  88:
  89:                try {
  90:                        // setup statement and retrieve results
  91:                        prepStmt = con.prepareStatement(SELECT_SQL);
  92:                        prepStmt.setString(1, customerId);
  93:                        rs = prepStmt.executeQuery();
  94:                        if (rs.next()) {
  95:                                //create the transfer object using data from rs
  96:                                cust = new CustomerTO();
  97:                                cust.setId(rs.getString(1));
  98:                                cust.setName(rs.getString(2));
  99:                                . . .
 100:                        }
 101:                } catch (Exception e) {
 102:                        // handle exception
 103:                } finally {
 104:                        // close connections
 105:                }
 106:                return cust;
 107:        }
 108:
 109:        public void update(CustomerTO cust) throws DAOException {
 110:                Connection con = null;
 111:                PreparedStatement prepStmt = null;
 112:                try {
 113:                        // prepare statement
 114:                        con = getConnection();
 115:
 116:                        prepStmt = con.prepareStatement(UPDATE_SQL);
 117:                        int i = 1;
 118:
 119:                        // add fields first
 120:                        prepStmt.setString(i++, cust.getName());
 121:                        prepStmt.setString(i++, cust.getAddress());
 122:                        . . .
 123:
 124:                        // now add where parameters
 125:                        prepStmt.setString(i++, cust.getId());
 126:                        int rowCount = prepStmt.executeUpdate();
 127:                        prepStmt.close();
 128:                        if (rowCount == 0) {
 129:                                throw new DAOException(
 130:                                        "Update Error:Customer Id:" + cust.getId());
 131:                        }
 132:                } catch (Exception e) {
 133:                        // handle exception
 134:                } finally {
 135:                        // close connections
 136:                }
 137:        }
 138:
 139:        public void delete(String customerId) throws Exception {
 140:                // setup variables
 141:                Connection con = getConnection();
 142:                PreparedStatement prepStmt = null;
 143:
 144:                try {
 145:                        // execute database update
 146:                        prepStmt = con.prepareStatement(DELETE_SQL);
 147:                        prepStmt.setString(1, customerId);
 148:                        prepStmt.executeUpdate();
 149:                } catch (Exception e) {
 150:                        // handle exception
 151:                } finally {
 152:                        // close connections
 153:                }
 154:        }
 155:
 156:        // other methods for finders, etc.
 157:        . . .
 158:}

7.3 Java Persistence API (JPA)

7.3.1 Arquitectura

Es parte de la suite JavaEE

http://java.sun.com/javaee/5/docs/api/

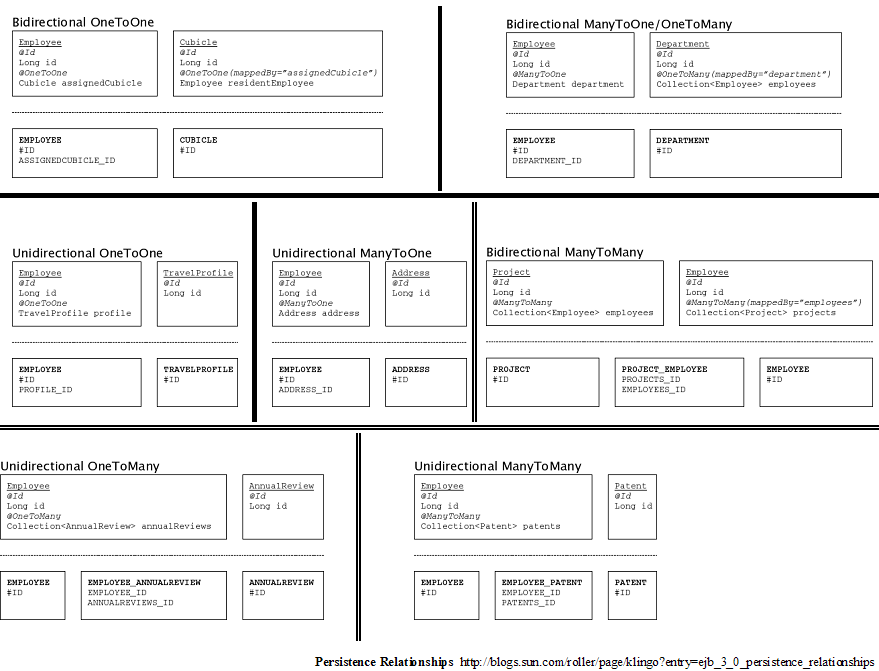

7.3.2 Annotations

7.3.3 Queries en JPA

API

package javax.persistence;

public interface Query {
   public List getResultList( );
   public Object getSingleResult( );
   public int executeUpdate( );
   public Query setMaxResults(int maxResult);
   public Query setFirstResult(int startPosition);
   public Query setHint(String hintName, Object value);
   public Query setParameter(String name, Object value);
   public Query setParameter(String name, Date value, TemporalType temporalType);
   public Query setParameter(String name, Calendar value, TemporalType temporalType);
   public Query setParameter(int position, Object value);
   public Query setParameter(int position, Date value, TemporalType temporalType);
   public Query setParameter(int position, Calendar value, TemporalType temporalType);
   public Query setFlushMode(FlushModeType flushMode);
}



Queries are created using these EntityManager methods:

package javax.persistence;

public interface EntityManager {
    public Query createQuery(String ejbqlString);
    public Query createNamedQuery(String name);
    public Query createNativeQuery(String sqlString);
    public Query createNativeQuery(String sqlString, Class resultClass);
    public Query createNativeQuery(String sqlString, String resultSetMapping);
}

EJBQL Queries at runtime


try {
   Query query = entityManager.createQuery(
               "from Customer c where c.firstName='Bill' and c.lastName='Burke'");
   Customer cust = (Customer)query.getSingleResult( );
} catch (EntityNotFoundException notFound) {
} catch (NonUniqueResultException nonUnique) {
}

EJBQL Named Queries

@NamedQueries({
   @NamedQuery
(name="getAverageReservation",
               query=
                 "SELECT AVG( r.amountPaid)
                  FROM Cruise As c, JOIN c.reservations r
                  WHERE c = :cruise"),

   @NamedQuery(name="findFullyPaidCruises",
               query=
                 "FROM Cruise cr
                  WHERE 0 < ALL (
                     SELECT res.amountPaid from cr.reservations res
                  )")
})
@Entity
public class Cruise {...}

Query query = em.createNamedQuery("getAverageReservation");
Query.setParameter("cruise", cruise);

Parameters

public List findByName(String first, String last) {
   Query query = entityManager.createQuery(
                "from Customer c where c.firstName=:first and c.lastName=:last");
   query.setParameter("first", first);
   query.setParameter("last", last);
   return query.getResultList( );
}


public List findByName(String first, String last) {
   Query query = entityManager.createQuery(
                "from Customer c where c.firstName=?1 and c.lastName=?2");
   query.setParameter(1, first);
   query.setParameter(2, last);
   return query.getResultList( );
}

Native (SQL) Queries

Query query = manager.createNativeQuery(
    "SELECT p.phone_PK, p.phone_number, p.type
        FROM PHONE AS p", Phone.class
);

7.3.4 EJB QL Examples

Select

SELECT OBJECT(c) FROM Customer AS c
o

SELECT c FROM Customer c





SELECT c.creditCard.creditCompany.address.city FROM Customer AS c

SELECT c.firstName, c.lastName FROM Customer AS c


Query query = manager.createQuery(
                "SELECT c.firstName, c.lastName FROM Customer AS c");
List results = query.getResultList( );
Iterator it = results.iterator( );
while (it.hasNext( )) {
   Object[] result = (Object[])it.next( );
   String first = (String)result[0];
   String last = (String)result[1];
}

The IN Operator and INNER JOIN

All the reservations of all the customers

SELECT r  FROM Customer AS c,  IN( c.reservations ) r
o
SELECT r.cruise  FROM Customer c INNER JOIN    c.reservations r

All ships for which customers have reservations


SELECT cbn.ship
FROM Customer AS c, IN ( c.reservations ) r,
IN( r.cabins ) cbn

Fetch Joins

@OneToMany(fetch=FetchType.LAZY)
public Collection getPhones( ) { return phones; }

...

1  Query query = manager.createQuery("SELECT c FROM Customer c");
2  List results = query.getResultList( );
3  Iterator it = results.iterator( );
4  while (it.hasNext( )) {
5    Customer c = (Customer)it.next( );
6    System.out.print(c.getFirstName( ) + " " + c.getLastName( ));
7    for (Phone p : c.getPhoneNumbers( )) {
8    System.out.print(p.getNumber( ) + " ");
9    }
10   System.out.println("");
11 }

Distinct

SELECT DISTINCT cust FROM Reservation AS res,  IN (res.customers) cust

Where

SELECT c
FROM Customer AS c
WHERE c.creditCard.creditCompany.name = 'Capital One'


SELECT s
FROM Ship AS s
WHERE s.tonnage >= 80000.00 AND s.tonnage <= 130000.00

SELECT c
FROM Customer AS c
WHERE c.address.state  IN ('FL', 'TX', 'MI', 'WI', 'MN')

SELECT c
FROM Customer AS c
WHERE c.address IS NULL

SELECT OBJECT( c ) FROM Customer AS c
WHERE c.lastName LIKE '%-%'

Where Operators

...BETWEEN 8 AND 16

....Address.state IN ('FL','TX',?1)
NOT IN (similar al IN)

...IS NULL ....IS NOT NULL

...crs.reservations IS NOT EMPTY

..phone.number LIKE '222%'

Functional Expressions

CONCAT(String1, String2)

LENGTH(String)

LOCATE(String1, String2 [,start])

SUBSTRING(String1, start, length)

ABS(number)

SQRT(double)

MOD(int,int)

Aggregate functions (select)

COUNT(identifier or path expression)

MAX(path expresssion), MIN (path expression)

AVG(numeric), SUM(numeric)
