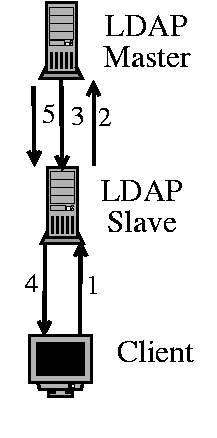

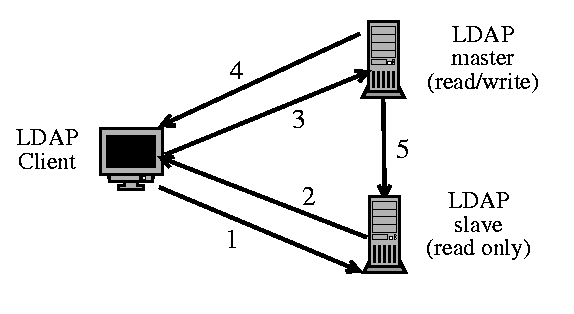

1. Client sends modification to replica
2. Replica forwards request to master
3. Master returns result to replica
4. Replica forwards result to client
5. Master updates replica

#
# See slapd.conf(5) for details on configuration options.
# This file should NOT be world readable.
#
include         /etc/openldap/slapd.at.conf
include         /etc/openldap/slapd.oc.conf
schemacheck     off

pidfile         /var/run/slapd.pid
argsfile        /var/run/slapd.args

defaultaccess read

access to attr=userpassword
   by self write
   by * read

access to *
   by self write
   by dn=".+" read
   by * read
#######################################################################
# ldbm database definitions
#######################################################################

database        ldbm
suffix          "dc=pisoftware, dc=com"
rootdn          "cn=Manager, dc=pisoftware, dc=com"
rootpw          {crypt}lAn4J@KmNp9
replica host=cox.staff.plugged.com.au:389
    binddn="cn=Manager,dc=pisoftware,dc=com"
    bindmethod=simple credentials=secret
    replogfile /var/lib/openldap/replication.log
# cleartext passwords, especially for the rootdn, should
# be avoid.  See slapd.conf(5) for details.
directory       /var/lib/openldap/




/etc/ldap/slapd.conf
#
# See slapd.conf(5) for details on configuration options.
# This file should NOT be world readable.
#
include		/home/digital/local/etc/openldap/schema/core.schema

# Define global ACLs to disable default read access.

# Do not enable referrals until AFTER you have a working directory
   # service AND an understanding of referrals.
   #referral ldap://root.openldap.org

pidfile /home/digital/local/var/run/slapd.pid
   argsfile /home/digital/local/var/run/slapd.args

# Load dynamic backend modules:
   # modulepath /home/digital/local/libexec/openldap
   # moduleload back_bdb.la
   # moduleload back_ldap.la
   # moduleload back_ldbm.la
   # moduleload back_passwd.la
   # moduleload back_shell.la

# Sample security restrictions
   # Require integrity protection (prevent hijacking)
   # Require 112-bit (3DES or better) encryption for updates
   # Require 63-bit encryption for simple bind
   # security ssf=1 update_ssf=112 simple_bind=64

# Sample access control policy:
   # Root DSE: allow anyone to read it
   # Subschema (sub)entry DSE: allow anyone to read it
   # Other DSEs:
   # Allow self write access
   # Allow authenticated users read access
   # Allow anonymous users to authenticate
   # Directives needed to implement policy:
   # access to dn.base="" by * read
   # access to dn.base="cn=Subschema" by * read
   # access to *
   # by self write
   # by users read
   # by anonymous auth
   #
   # if no access controls are present, the default policy
   # allows anyone and everyone to read anything but restrict
   # updates to rootdn. (e.g., "access to * by * read")
   #
   # rootdn can always read and write EVERYTHING!

   #password-hash {MD5}
   #######################################################################
   # BDB database definitions
   #######################################################################

database bdb
   suffix "dc=midominio,dc=mx"
   rootdn "cn=Manager,dc=midominio,dc=mx"
   # Cleartext passwords, especially for the rootdn, should
   # be avoid. See slappasswd(8) and slapd.conf(5) for details.
   # Use of strong authentication encouraged.
   rootpw lolo
   # The database directory MUST exist prior to running slapd AND
   # should only be accessible by the slapd and slap tools.
   # Mode 700 recommended.
   directory /home/digital/local/var/openldap-data
   # Indices to maintain
   index objectClass eq

archivo: initial.ldif

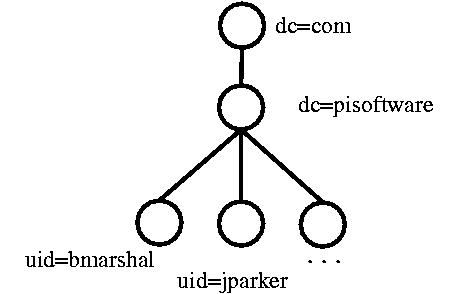

dn: dc=midominio,dc=mx
objectclass: dcObject
objectclass: organization
o: Example Company
dc: midominio


dn: cn=Manager,dc=midominio,dc=mx
   objectclass: organizationalRole
   cn: Manager

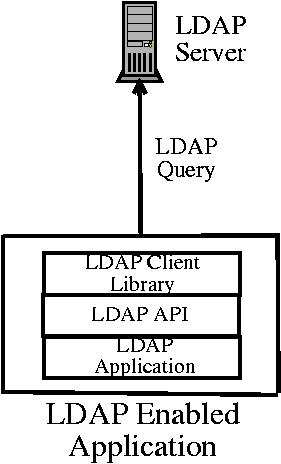

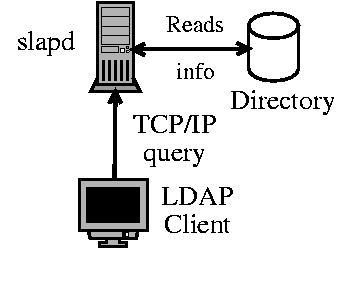

Application Architecture

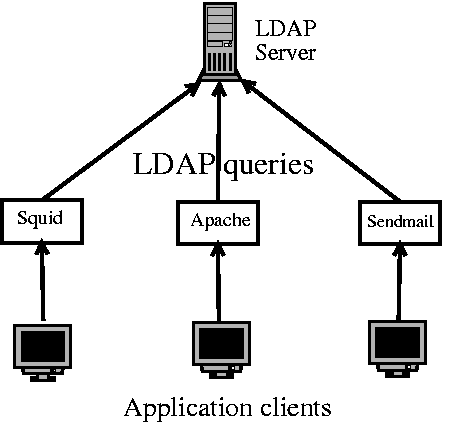

Using Multiple Applications

   1:import com.novell.ldap.LDAPAttribute;
   2:import com.novell.ldap.LDAPAttributeSet;
   3:import com.novell.ldap.LDAPEntry;
   4:import com.novell.ldap.LDAPConnection;
   5:import com.novell.ldap.LDAPException;
   6:import java.io.UnsupportedEncodingException;
   7:
   8:public class AddEntry
   9:{
  10:    public static void main( String[] args )
  11:    {
  12:        if (args.length != 4) {
  13:            System.err.println("Usage:   java AddEntry <host name> <login dn>"
  14:                                                + " <password> <container>");
  15:            System.err.println("Example: java AddEntry Acme.com"
  16:                        + " \"cn=admin,o=Acme\" secret \"ou=Sales,o=Acme\"");
  17:            System.exit(1);
  18:        }
  19:
  20:        int ldapPort = LDAPConnection.DEFAULT_PORT;
  21:        int ldapVersion  = LDAPConnection.LDAP_V3;
  22:        String ldapHost       = args[0];
  23:        String loginDN        = args[1];
  24:        String password       = args[2];
  25:        String containerName  = args[3];
  26:        LDAPConnection lc = new LDAPConnection();
  27:        LDAPAttribute  attribute = null;
  28:        LDAPAttributeSet attributeSet = new LDAPAttributeSet();
  29:
  30:
  31:        /* To Add an entry to the directory,
  32:         *  - Create the attributes of the entry and add them to an attribute set
  33:         *  - Specify the DN of the entry to be created
  34:         *  - Create an LDAPEntry object with the DN and the attribute set
  35:         *  - Call the LDAPConnection add method to add it to the directory
  36:         */
  37:        attributeSet.add( new LDAPAttribute(
  38:                             "objectclass", new String("organizationalPerson")));
  39:        attributeSet.add( new LDAPAttribute("cn",
  40:                new String[]{"James Smith", "Jim Smith", "Jimmy Smith"}));
  41:
  42:        attributeSet.add( new LDAPAttribute("sn", new String("Smith")));
  43:        attributeSet.add( new LDAPAttribute("telephonenumber",
  44:                                            new String("1 801 555 1212")));
  45:
  46:        attributeSet.add( new LDAPAttribute("userpassword",
  47:                                               new String("newpassword")));
  48:
  49:        String  dn  = "cn=Jim Smith," + containerName;
  50:        LDAPEntry newEntry = new LDAPEntry( dn, attributeSet );
  51:
  52:        try {
  53:            // connect to the server
  54:            lc.connect( ldapHost, ldapPort );
  55:            // authenticate to the server
  56:            lc.bind( ldapVersion, loginDN, password.getBytes("UTF8") );
  57:
  58:            lc.add( newEntry );
  59:            System.out.println( "\nAdded object: " + dn + " successfully." );
  60:
  61:            // disconnect with the server
  62:            lc.disconnect();
  63:        }
  64:        catch( LDAPException e ) {
  65:            System.out.println( "Error:  " + e.toString());
  66:        }
  67:        catch( UnsupportedEncodingException e ) {
  68:            System.out.println( "Error: " + e.toString() );
  69:        }
  70:        System.exit(0);
  71:    }
  72:}


digital@localhost:~/ldapsample> java AddEntry localhost "cn=Manager,dc=midominio,dc=mx"        lolo "dc=midominio,dc=mx"

Added object: cn=Jim Smith,dc=midominio,dc=mx successfully.

   1:import com.novell.ldap.*;
   2:import java.io.UnsupportedEncodingException;
   3:
   4:public class AddUserToGroup
   5:{
   6:    public static void main( String[] args )
   7:    {
   8:
   9:        if (args.length != 5) {
  10:            usage();
  11:            System.exit(1);
  12:        }
  13:
  14:        int ldapPort      = LDAPConnection.DEFAULT_PORT;
  15:        int ldapVersion   = LDAPConnection.LDAP_V3;
  16:        boolean status    = false;
  17:        LDAPConnection lc = new LDAPConnection();
  18:        String   ldapHost = args[0];
  19:        String   loginDN  = args[1];
  20:        String   password = args[2];
  21:        String   userDN   = args[3];
  22:        String   groupDN  = args[4];
  23:
  24:        try {
  25:            // connect to the server
  26:            lc.connect( ldapHost, ldapPort);
  27:            // bind to the server
  28:            lc.bind( ldapVersion, loginDN, password.getBytes("UTF8") );
  29:
  30:            // call _AddUseToGroup() to add the user to the group
  31:            status = _AddUserToGroup( lc, userDN, groupDN );
  32:
  33:            if ( status )
  34:                System.out.println(
  35:                  "User: " + userDN + " was enrolled in group: " + groupDN);
  36:            else
  37:                System.out.println( "User: " + userDN +
  38:                             " could not be enrolled in group: " + groupDN);
  39:
  40:            // disconnect with the server
  41:            lc.disconnect();
  42:        }
  43:        catch( LDAPException e ) {
  44:            System.out.println( "Error: " + e.toString() );
  45:        }
  46:        catch( UnsupportedEncodingException e ) {
  47:            System.out.println( "Error: " + e.toString() );
  48:        }
  49:        System.exit(0);
  50:    }
  51:
  52:    public static void usage() {
  53:            System.err.println("Usage:   java AddUserToGroup <ldap host>"
  54:                        + " <login dn> <password> <user dn >\n"
  55:                        +"              <group dn>");
  56:            System.err.println("Example: java AddUserToGroup Acme.com"
  57:                               + " \"cn=Admin,o=Acme\" secret\n"
  58:                               + "              \"cn=James,ou=Sales,o=Acme\""
  59:                               + " \"cn=salesGroup,ou=Sales,o=Acme\"");
  60:    }
  61:
  62:    public static boolean _AddUserToGroup( LDAPConnection lc,
  63:                                           String userdn,
  64:                                           String groupdn ) {
  65:
  66:        // modifications for group and user
  67:        LDAPModification[]  modGroup = new LDAPModification[1];
  68:
  69:        // Add modifications to modGroup
  70:        LDAPAttribute member = new LDAPAttribute("member", userdn);
  71:        modGroup[0] = new LDAPModification( LDAPModification.ADD, member);
  72:
  73:        try {
  74:            // Modify the group's attributes
  75:            lc.modify( groupdn, modGroup);
  76:            System.out.println("Modified the group's attribute.");
  77:        }
  78:        catch( LDAPException e ) {
  79:            System.out.println(
  80:                "Failed to modify group's attributes: " + e.toString() );
  81:
  82:            return false;
  83:        }
  84:        return true;
  85:    }
  86:
  87:
  88:}


:> java AddUserToGroup localhost "cn=Manager,dc=midominio,dc=mx"        lolo "cn=Carlos Proal,ou=usuarios,dc=midominio,dc=mx" "cn=amigos,dc=midominio,dc=mx"
       Modified the group's attribute.
       User: cn=Carlos Proal,ou=usuarios,dc=midominio,dc=mx was enrolled in group:        cn=amigos,dc=midominio,dc=mx

   1:import com.novell.ldap.LDAPAttribute;
   2:import com.novell.ldap.LDAPAttributeSet;
   3:import com.novell.ldap.LDAPConnection;
   4:import com.novell.ldap.LDAPEntry;
   5:import com.novell.ldap.LDAPException;
   6:import com.novell.ldap.LDAPSearchResults;
   7:import com.novell.ldap.util.Base64;
   8:import java.util.Enumeration;
   9:import java.util.Iterator;
  10:import java.io.UnsupportedEncodingException;
  11:
  12:public class Read
  13:{
  14:    public static void main( String[] args )
  15:    {
  16:        if (args.length != 4) {
  17:           System.out.println("Usage:   java Search <host name> <login dn>"
  18:                              + " <password> <user dn>");
  19:
  20:           System.out.println("Example: java Search Acme.com"
  21:                                    + " \"cn=admin,o=Acme\""
  22:                                    + " secret \"cn= John Smith, ou=sales,o=Acme\"");
  23:
  24:           System.exit(0);
  25:        }
  26:
  27:        int ldapPort = LDAPConnection.DEFAULT_PORT;
  28:        int ldapVersion  = LDAPConnection.LDAP_V3;
  29:        String ldapHost = args[0];
  30:        String loginDN  = args[1];
  31:        String password = args[2];
  32:        String userDN = args[3];
  33:
  34:        LDAPConnection lc = new LDAPConnection();
  35:
  36:        try {
  37:            // connect to the server
  38:            lc.connect( ldapHost, ldapPort );
  39:            // bind to the server
  40:            lc.bind( ldapVersion, loginDN, password.getBytes("UTF8") );
  41:
  42:            LDAPEntry resultEntry =
  43:                lc.read(  userDN );
  44:
  45:            /* To print out the search results,
  46:             *   -- The first while loop goes through all the attributes
  47:             *   -- The second while loop goes through all the attribute values
  48:             */
  49:
  50:                System.out.println("\n" + resultEntry.getDN());
  51:                System.out.println("  Attributes: ");
  52:
  53:                LDAPAttributeSet attributeSet = resultEntry.getAttributeSet();
  54:                Iterator allAttributes = attributeSet.iterator();
  55:
  56:                while(allAttributes.hasNext()) {
  57:                    LDAPAttribute attribute =
  58:                                (LDAPAttribute)allAttributes.next();
  59:                    String attributeName = attribute.getName();
  60:
  61:                    System.out.println("    " + attributeName);
  62:
  63:                    Enumeration allValues = attribute.getStringValues();
  64:
  65:                    if( allValues != null) {
  66:                        while(allValues.hasMoreElements()) {
  67:                            String Value = (String) allValues.nextElement();
  68:                            if (Base64.isLDIFSafe(Value)) {
  69:                                // is printable
  70:                                System.out.println("      " + Value);
  71:                            }
  72:                            else {
  73:                                // base64 encode and then print out
  74:                                Value = Base64.encode(Value.getBytes());
  75:                                System.out.println("      " + Value);
  76:                            }
  77:                        }
  78:                    }
  79:                }
  80:
  81:            // disconnect with the server
  82:            lc.disconnect();
  83:        }
  84:        catch( LDAPException e ) {
  85:            System.out.println( "Error: " + e.toString() );
  86:        }
  87:        catch( UnsupportedEncodingException e ) {
  88:            System.out.println( "Error: " + e.toString() );
  89:        }
  90:        System.exit(0);
  91:    }
  92:}


:> java Read localhost "cn=Jim Smith,dc=midominio,dc=mx" newpassword "cn=Jim Smith,dc=midominio,dc=mx"
cn=Jim Smith,dc=midominio,dc=mx
         Attributes:
         sn
         Smith
         cn
         James Smith
         Jim Smith
         Jimmy Smith
         objectClass
         organizationalPerson
         userPassword
         newpassword
         telephoneNumber
         1 801 555 1212

:> java Read localhost "cn=Carlos Proal,ou=usuarios,dc=midominio,dc=mx" lele "cn=Hermelinda Linda,ou=usuarios,dc=midominio,dc=mx"
cn=Hermelinda Linda,ou=usuarios,dc=midominio,dc=mx


         Attributes:
         sn
         Linda
         cn
         Hermelinda Linda
         objectClass
         organizationalPerson
         person
         top
         userPassword
         feya


   1:import com.novell.ldap.LDAPAttribute;
   2:import com.novell.ldap.LDAPAttributeSet;
   3:import com.novell.ldap.LDAPConnection;
   4:import com.novell.ldap.LDAPEntry;
   5:import com.novell.ldap.LDAPException;
   6:import com.novell.ldap.LDAPSearchResults;
   7:import com.novell.ldap.util.Base64;
   8:import java.util.Enumeration;
   9:import java.util.Iterator;
  10:import java.io.UnsupportedEncodingException;
  11:
  12:public class Search
  13:{
  14:    public static void main( String[] args )
  15:    {
  16:        if (args.length != 5) {
  17:           System.out.println("Usage:   java Search <host name> <login dn>"
  18:                              + " <password> <search base>\n"
  19:                              + "         <search filter>");
  20:           System.out.println("Example: java Search Acme.com"
  21:                                    + " \"cn=admin,o=Acme\""
  22:                                    + " secret \"ou=sales,o=Acme\"\n"
  23:                                    + "         \"(objectclass=*)\"");
  24:           System.exit(0);
  25:        }
  26:
  27:        int ldapPort = LDAPConnection.DEFAULT_PORT;
  28:        int searchScope = LDAPConnection.SCOPE_ONE;
  29:        int ldapVersion  = LDAPConnection.LDAP_V3;
  30:        String ldapHost = args[0];
  31:        String loginDN  = args[1];
  32:        String password = args[2];
  33:        String searchBase = args[3];
  34:        String searchFilter = args[4];
  35:        LDAPConnection lc = new LDAPConnection();
  36:
  37:        try {
  38:            // connect to the server
  39:            lc.connect( ldapHost, ldapPort );
  40:            // bind to the server
  41:            lc.bind( ldapVersion, loginDN, password.getBytes("UTF8") );
  42:
  43:            LDAPSearchResults searchResults =
  44:                lc.search(  searchBase,
  45:                            searchScope,
  46:                            searchFilter,
  47:                            null,          // return all attributes
  48:                            false);        // return attrs and values
  49:
  50:            /* To print out the search results,
  51:             *   -- The first while loop goes through all the entries
  52:             *   -- The second while loop goes through all the attributes
  53:             *   -- The third while loop goes through all the attribute values
  54:             */
  55:            while ( searchResults.hasMore()) {
  56:                LDAPEntry nextEntry = null;
  57:                try {
  58:                    nextEntry = searchResults.next();
  59:                }
  60:                catch(LDAPException e) {
  61:                    System.out.println("Error: " + e.toString());
  62:
  63:                    // Exception is thrown, go for next entry
  64:
  65:                    continue;
  66:                }
  67:
  68:                System.out.println("\n" + nextEntry.getDN());
  69:                System.out.println("  Attributes: ");
  70:
  71:                LDAPAttributeSet attributeSet = nextEntry.getAttributeSet();
  72:                Iterator allAttributes = attributeSet.iterator();
  73:
  74:                while(allAttributes.hasNext()) {
  75:                    LDAPAttribute attribute =
  76:                                (LDAPAttribute)allAttributes.next();
  77:                    String attributeName = attribute.getName();
  78:
  79:                    System.out.println("    " + attributeName);
  80:
  81:                    Enumeration allValues = attribute.getStringValues();
  82:
  83:                    if( allValues != null) {
  84:                        while(allValues.hasMoreElements()) {
  85:                            String Value = (String) allValues.nextElement();
  86:                            if (Base64.isLDIFSafe(Value)) {
  87:                                // is printable
  88:                                System.out.println("      " + Value);
  89:                            }
  90:                            else {
  91:                                // base64 encode and then print out
  92:                                Value = Base64.encode(Value.getBytes());
  93:                                System.out.println("      " + Value);
  94:                            }
  95:                        }
  96:                    }
  97:                }
  98:            }
  99:            // disconnect with the server
 100:            lc.disconnect();
 101:        }
 102:        catch( LDAPException e ) {
 103:            System.out.println( "Error: " + e.toString() );
 104:        }
 105:        catch( UnsupportedEncodingException e ) {
 106:            System.out.println( "Error: " + e.toString() );
 107:        }
 108:        System.exit(0);
 109:    }
 110:}


:> java Search localhost "cn=Jim        Smith,dc=midominio,dc=mx" newpassword "dc=midominio,dc=mx" "(objectclass=*)"

cn=Manager,dc=midominio,dc=mx
         Attributes:
         cn
         Manager
         objectClass
         organizationalRole

cn=Carlos Proal,dc=midominio,dc=mx
         Attributes:
         sn
         Proal
         title
         Mtro.
         Ing.
         ou
         biblio
         cn
         Carlos Proal
         objectClass
         organizationalPerson
         person
         top
         street
         mi casa
         userPassword
         lele

cn=amigos,dc=midominio,dc=mx
         Attributes:
         cn
         amigos
         objectClass
         groupOfNames
         top
         member
         cn=Carlos Proal,dc=midominio,dc=mx
         cn=Juan Perez,dc=midominio,dc=mx

cn=Juan Perez,dc=midominio,dc=mx
         Attributes:
         sn
         Perez
         cn
         Juan Perez
         objectClass
         organizationalPerson
         person
         top
         userPassword
         lele

cn=Jim Smith,dc=midominio,dc=mx
         Attributes:
         sn
         Smith
         cn
         James Smith
         Jim Smith
         Jimmy Smith
         objectClass
         organizationalPerson
         userPassword
         newpassword
         telephoneNumber
         1 801 555 1212

   1:import com.novell.ldap.*;
   2:import java.io.UnsupportedEncodingException;
   3:
   4:public class VerifyPassword
   5:{
   6:    public static void main( String[] args )
   7:    {
   8:        if (args.length != 5) {
   9:           System.out.println("Usage:   java VerifyPassword <host name>"
  10:                            + " <login dn> <password> <object dn>\n"
  11:                            + "         <test password>");
  12:           System.out.println("Example: java VerifyPassword Acme.com "
  13:                       + "\"cn=Admin,o=Acme\" secret\n"
  14:                       + "         \"cn=JSmith,ou=Sales,o=Acme\" testPassword");
  15:           System.exit(0);
  16:        }
  17:
  18:        int ldapPort = LDAPConnection.DEFAULT_PORT;
  19:        int ldapVersion = LDAPConnection.LDAP_V3;
  20:        String ldapHost = args[0];
  21:        String loginDN = args[1];
  22:        String password = args[2];
  23:        String objectDN = args[3];
  24:        String testPassword = args[4];
  25:        LDAPConnection lc = new LDAPConnection();
  26:
  27:        try {
  28:            // connect to the server
  29:            lc.connect( ldapHost, ldapPort );
  30:
  31:            // authenticate to the server
  32:            lc.bind( ldapVersion, loginDN, password.getBytes("UTF8") );
  33:
  34:            LDAPAttribute attr = new LDAPAttribute(
  35:                                            "userPassword", testPassword );
  36:            boolean correct = lc.compare( objectDN, attr );
  37:
  38:            System.out.println( correct ? "The password is correct.":
  39:                                          "The password is incorrect.\n");
  40:
  41:            // disconnect with the server
  42:            lc.disconnect();
  43:        }
  44:        catch( LDAPException e ) {
  45:            if ( e.getResultCode() == LDAPException.NO_SUCH_OBJECT ) {
  46:                System.err.println( "Error: No such entry" );
  47:            } else if ( e.getResultCode() ==
  48:                                        LDAPException.NO_SUCH_ATTRIBUTE ) {
  49:                System.err.println( "Error: No such attribute" );
  50:            } else {
  51:                System.err.println( "Error: " + e.toString() );
  52:            }
  53:        }
  54:        catch( UnsupportedEncodingException e ) {
  55:            System.out.println( "Error: " + e.toString() );
  56:        }
  57:        System.exit(0);
  58:    }
  59:}
  60:


:> java VerifyPassword localhost "cn=Jimmy        Smith,dc=midominio,dc=mx" newpassword "cn=Jimmy Smith,dc=midominio,dc=mx"        newpassword
       Error: LDAPException: Invalid Credentials (49) Invalid Credentials
       LDAPException: Matched DN:
       digital@localhost:~/ldapsample> java VerifyPassword localhost "cn=Jim        Smith,dc=midominio,dc=mx" newpassword "cn=Jimmy Smith,dc=midominio,dc=mx"        newpassword
       Error: No such entry
       digital@localhost:~/ldapsample> java VerifyPassword localhost "cn=Jim        Smith,dc=midominio,dc=mx" newpassword "cn=Jim Smith,dc=midominio,dc=mx"        newpassword
       The password is correct.

   1:import java.io.UnsupportedEncodingException;
   2:import java.security.MessageDigest;
   3:import java.security.NoSuchAlgorithmException;
   4:import com.novell.ldap.util.Base64;
   5:/**
   6: * Test MD5 digest computation
   7: *
   8: */
   9:public class MD5
  10:   {
  11:
  12:   /**
  13:    * test MD5 digest, requires Java 1.4+
  14:    *
  15:    * @param args not used
  16:    */
  17:   public static void main ( String[] args ) throws UnsupportedEncodingException, NoSuchAlgorithmException
  18:   {
  19:      byte[] theTextToDigestAsBytes = "lolo".getBytes( "ISO-8859-1" /* encoding */ );
  20:      MessageDigest md = MessageDigest.getInstance( "MD5" );
  21:      md.update( theTextToDigestAsBytes );
  22:      byte[] digest = md.digest();
  23:      System.out.println("{MD5}"+Base64.encode(digest));
  24:
  25:
  26:
  27:   }
  28:   }


:> java MD5
       {MD5}1lgdVCx+r4AShPCER4tfzA==
